Thursday, March 4, 2010

Tie Bar MkII.5!

Essentially I want to get something that at least given an impression of the real thing, as seen in the image kindly sent to me by Ray Pilgrim, which shows a set of points at Crookwell.

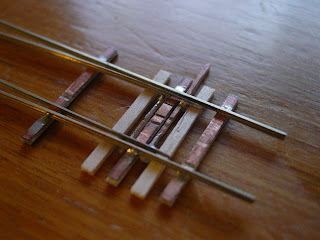

So I've added a second tie bar to the points just to check out the overall look and make sure it works ok. It seems to be easy enough to add and I think gives a reasonable representation, or at least it should once painted and weathered etc.

Time will tell, although I'm sure I'll find a few more ways to do this before I'm happy!

Wednesday, March 3, 2010


Just a quick post this time as I haven't really done much of note over the past week or so.

Firstly, I had a bit more of a play with the tie bar design that activates the points, and have been able to fine down the size a bit more, and place it a little better so it sits neatly between the sleepers.

I've cut down the width so that there is almost nothing protruding from out under the rail on one side, so I should be able to ballast pretty much up to the rail side without hindering point movement, unlike using the whole sliding sleeper effect.

I've left a long bit sticking out of one side, as this will (attempt to!) replicate the point rodding that activates the points on the real thing. It will need a bit more shaping, fining out and obviously each set of points will need it in a particular size to suit it's location.

Am I going to install point rodding to begin with, no way. Would I like to at some point, definitely, and at least if I have something there to begin with it will save having to add something at a later date.

The cuts in the copper cladding will be filled with a bit of filler so they are not noticeable, but I figured a couple of cuts would be worthwhile as any touch between the tie bar and copper sleeper will produce a shot. Not that I can see any way of them touching, but Murphy's Law and all that stuff ..............
