Proposed Gunnedah And Beyond Track Plan and Operation Overview


This is not really a progress update, more of an “overall vision” of what I am hoping will be achieved over the coming months.

As far as the main Gunnedah yard is concerned, 90% of the track is in place, all of the points are working, and trains (well, a 48-class on light engine duty) can be run from one end of the yard to the other. The next challenge is to be able to run a train completely around the room.

The layout was always designed to operate with two levels, the top level comprising Gunnedah Yard with representations of what is found on the line both on the way into Gunnedah and out the other side. The priority however, is to get the top level as complete as possible first.

The track plan shown is pretty much what I would like to get down to allow continuous running as well as some “trip trains” that will allow for some actual operation.

Starting with the proposed helix (that may or may not eventuate depending on circumstances), that would bring trains from the lower level which is effectively “staging” and representing trains coming from Werris Creek/Newcastle/Sydney, to the top level, joining the single line running around the inside of the layout which represents traveling towards Gunnedah.

This line continues around the room and has two sidings located on the approach to Gunnedah. The first siding is the BP oil siding, the second is the Vacuum (Mobil) oil siding. The BP siding is shunted by trains heading to Gunnedah, where empty tankers will be pulled from the siding and full tankers (having come from Werris Creek/Newcastle/Sydney) placed in the siding. Empty tankers will then dropped off in Gunnedah Yard, and will then await being added to a return train.

The second siding is the Vacuum siding, this was typically shunted by trains heading back from Gunnedah towards Werris Creek, full tankers would have been left in Gunnedah Yard and attached to trains heading back towards Werris Creek, and again empty tankers pulled from the siding and replaced with full tankers.

Both of these operations will typically involve a mixed goods consist, and allow for some simple shunting duties by shunting the sidings, as well as placing empty and full tankers within Gunnedah Yard.

Gunnedah Yard itself has a few sidings, the main grain siding with silo, another oil siding, and at the far end of the yard will be a stock siding. In reality the stock sidings are slightly further along the main line, however space kind of dictates that it will be part of the yard. The stock sidings are not pictured but will be on the right-hand side of the diagram towards the inside of the layout.

As trains proceed along the single line out of Gunnedah Yard heading “North” a set of points splits the line, the outside track representing what is North of Gunnedah. The section of the layout where the proposed helix is shown just after the line splits, will be a lift out section, this goes across the doorway to the room. When the line reaches the other side to the layout proper, the first siding is the abattoir siding. Having a “runaround” this siding can be serviced by trains traveling in either direction, typically mixed goods, and will usually be refridgerated wagons.

As the line winds its way clockwise, the next siding is the colliery siding. Due to space limitations it will be fairly basic but will still allow for coal train operations. I have drawn up many variations of this siding, but this one should work acceptably well within the space available.

On the left-hand side of the diagram, just past the colliery siding is what will be a fairly basic representation of Emerald Hill, which is the next station north of Gunnedah. Whilst this is a through station as part of the main line north, it will essentially operate as a terminus for trains travelling north. Emerald Hill has a small station platform, a loading bank, a stock loading bank, and a wheat silo. This will allow for a bit of shunting of mixed goods trains, as well as allowing trains accessing the colliery siding a runaround facility.

This design is not overly complicated, and yet should mostly capture the operations of trains running to Gunnedah and beyond. Adding more sidings means more sets of points, which greatly increases the amount of work required, and quite frankly I want to as much as possible keep a sense of “open space”, and not turn what is essentially a single country line into a metropolis!

The exact placement of all tracks may vary slightly as things often look different when track is placed in the space, but the overall design is pretty close to what I think will work best.


Sunday, July 23, 2017

Gunnedah Yard Track and Points Powered and Activated

-->
February 26th was the previous update, so just under four months ago, time certainly seems to be flying by at a rate of knots this year that’s for sure. In my last post I mentioned that it had gotten quite difficult getting down to the train shed due to no longer being able to walk more than a few steps. Unfortunately even standing is no longer possible, however, whilst I am now permanently in a wheelchair, it is on the positive side a rather fancy electric one which I can control with my chin, and I can now quite easily get around the house, and more importantly down to the train shed so that work can continue on the layout, and continued it has.

I was again fortunate and very appreciative that my mate (who was responsible for most of the layout construction) was able to spend a couple of days up here continuing on the work done in February. At that point all of the points and about 80% of the track was permanently down, and about 60% of the wiring underneath was basically in place across the three modules.

The first job was to complete where track goes across module joins, a job my mate was not looking forward too as he doesn’t find the process of laying track in anyway therapeutic, relaxing, or even mildly enjoyable! However, the laying of the somewhat fiddly sections of track was completed quite successfully, and whilst I had full confidence that they would work fine, he had a rather large look of relief and amazement when a Trainorama BWH was pushed across each module join without any signs of derailment.

With this relatively small (in overall terms) amount of track work completed, that lone BWH was now able to be “5 finger shunted” from the corner module that leads into Gunnedah Yard, across the module join and through the centre module which contains most of the main yard, and then across the next module join to the corner module on the far side of Gunnedah Yard.

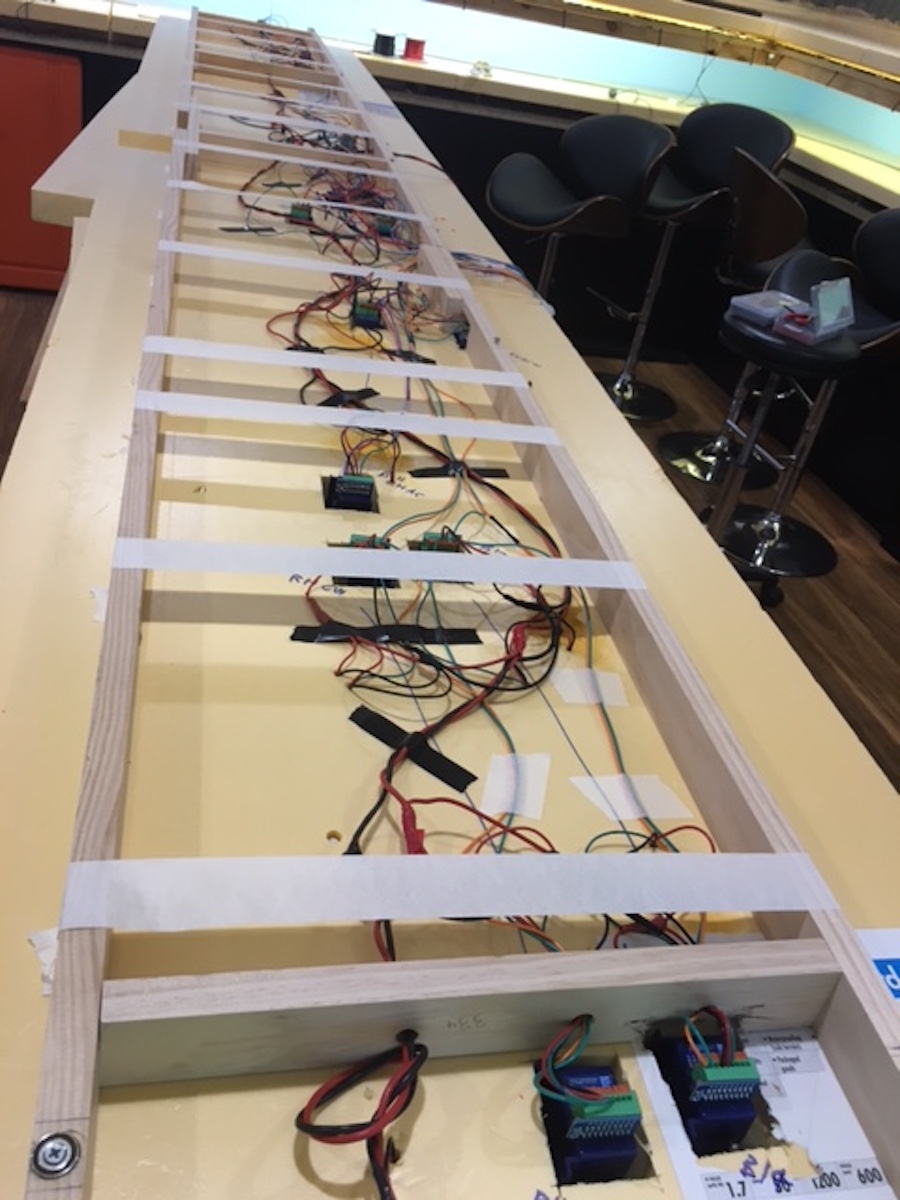

With track work out of the way for now, it was time to remove the centre module from the layout, and place it upside down on the mobile tool cabinet/workbench in the centre of the room. Once again the modular construction just makes working on each section of the layout so much easier, and having just about all of the tools and wiring supplies in the cabinet puts everything within easy reach.

There are I think fifteen sets of points on the centre module, and the yard track is between three and five roads along its approximate three and a half meter length, so there is a sizeable amount of wiring underneath this module once you take into account droppers of each section of track and points needing to be joined to the main bus wiring running the length of the module, and each point motor having five wires to be connected for both frog polarity switching and actual point blade switching.

This module was approximately 40% wired, so there was still a semi-substantial amount to be completed, but due to my mates ability to get up to speed on these things very quickly (taking into account the wiring already there was started by somebody else), and also due to my meticulous (if I do say so myself) note keeping and having everything in relation to wiring clearly written out, the soldering of droppers to the main bus and routing to the point motors, and then attaching and running the pairs of wires for the point activation was completed.

At this point all of the wiring was given a visual once over to make sure that everything looked okay, or at least nothing was obviously wrong (like a red wire attached to a black wire), and it was time to place the module back into position on the layout. The main bus wiring on each module has a plug, so that once in place it quickly and easily connects to the main bus wiring running around the room. Once connected it was time to switch on the DCC system and see what happened.

Assuming that the mass of wiring had all been connected properly absolutely nothing should happen, an incorrect connection causing a short should see the light bulb glowing brightly, and we joked that even worse we could see smoke or even fire, but to his surprise and my (to be perfectly honest) expectation, absolutely nothing happened, which meant that either everything was perfectly connected, or nothing was actually powered. Grabbing a small single offcut of rail and placing it across a section of track saw the orange light bulb glowing brightly, indicating that the module was indeed powered and the short circuit identification was working as it should.

The next step was to take every set of paired wires from each point motor, and attach them to the “Alpha Switch A” boards which have been temporarily hung in place for testing purposes.

These boards which are from DCC Concepts in Western Australia make for extremely easy switching of points, a pair of wires from each point motor goes to a set of screw terminals on the board (each board has six sets of terminals), and on the opposite side of the board are a pair of socket’s that the LED pushbutton switches are plugged into.

The great thing about this system is that each of the six outputs can drive two point motors, so where you have two sets of points that will always be switched together, you can switch both sets of points with the press of one LED pushbutton switch.

There is an even better feature with these boards, and that is the ability to use a three LED pushbutton switch system, which is perfect for showing route selection where you have a pair of points in a crossover situation, so you have a green LED for each straight route selection, and a single LED indicating the crossover route. To switch the points from the straight ahead position you press the single LED pushbutton in the crossover position on the track diagram, and both sets of points will switch, to return them both to the straight ahead position, you only need to press one of the LED pushbutton switches on either of the straight routes, both sets of points will be activated, and BOTH LED pushbutton switches on the straight routes will light up.

So it is a matter of drawing the track plan onto a panel and mounting the LED pushbutton switches in the appropriate positions, and you end up with pushbutton point switching with LED route indication as well. I have added a picture of a sample control panel, and a diagram of how the LED pushbuttons are connected when three are used to switch two pairs of points in a crossover situation.

Once all of the wires from the point motors were connected to the boards, three boards are needed to switch all of the points for the main Gunnedah yard section, all of the LED pushbutton switches connected, and the boards were connected to the three wire power bus also running around the room, it was time to switch on the power supply for the point motors and see what happened. The power supply is also from DCC Concepts and is specifically designed to go with the boards, which just makes life very easy.

With the power supply turned on, half of the LED pushbutton switches immediately illuminated, and about twenty-one sets of point motors whirred into life, this was a very good sign. It was then just a matter of individually testing each set of points, and whilst there was a slightly scary moment when a single set of points did not want to work, it was a relatively simple matter of lifting the module at the front and have a peek underneath, where thankfully it was nothing more sinister than a pair of wires pushed into the wrong terminals on the point of motor, and once corrected the point motor activated as it should.

At this point we had both track power and point activation power, so it was time to place a 48-class on the track on the corner module leading into Gunnedah Yard, and set is on its way through the yard. It went quite happily across the first module join and continued through the yard until it stopped and the orange light bulb illuminated brightly, bugger! At first I thought maybe the frog had been wired to the wrong terminal on the point motor, but it was actually nothing more than running the engine against the points that were set the wrong way, so again the wiring was all done correctly, and the short-circuit indication worked as it should.

About fifteen minutes was spent running the 48-class back and forth from one end of the yard to the other, switching routes each time, and apart from one or two slight stutters in one spot (probably no more than dirty track) there were no derailments or shorts, which I thought was bloody fantastic.

Getting to this point where all of the points and about 95% of the track is permanently laid and operational for the main Gunnedah Yard section, which is a run of around eight metres of connected track end to end, represents a massive amount of work by friends and family, giving up their time so that I can see my goal of building a representation of Gunnedah come to fruition. This is something that I certainly can never adequately repay, but nonetheless am massively appreciative of.

The next phase of construction will concentrate on constructing a simple lift in section which will go across the doorway, and with some track temporarily laid around the rest of the room, trains will be able to be run continually around the room, so whilst the operating of Gunnedah Yard will be left to visitors (of which I hope there will be a few), it will be nice to just sit in the middle of the room and watch a couple of trains meander around.

Cheers for now
Darren
